RSSF-150

Semi Automatic Syncro Glass Sliding Fitting (Push/Pull)

Semi-Automatic Series

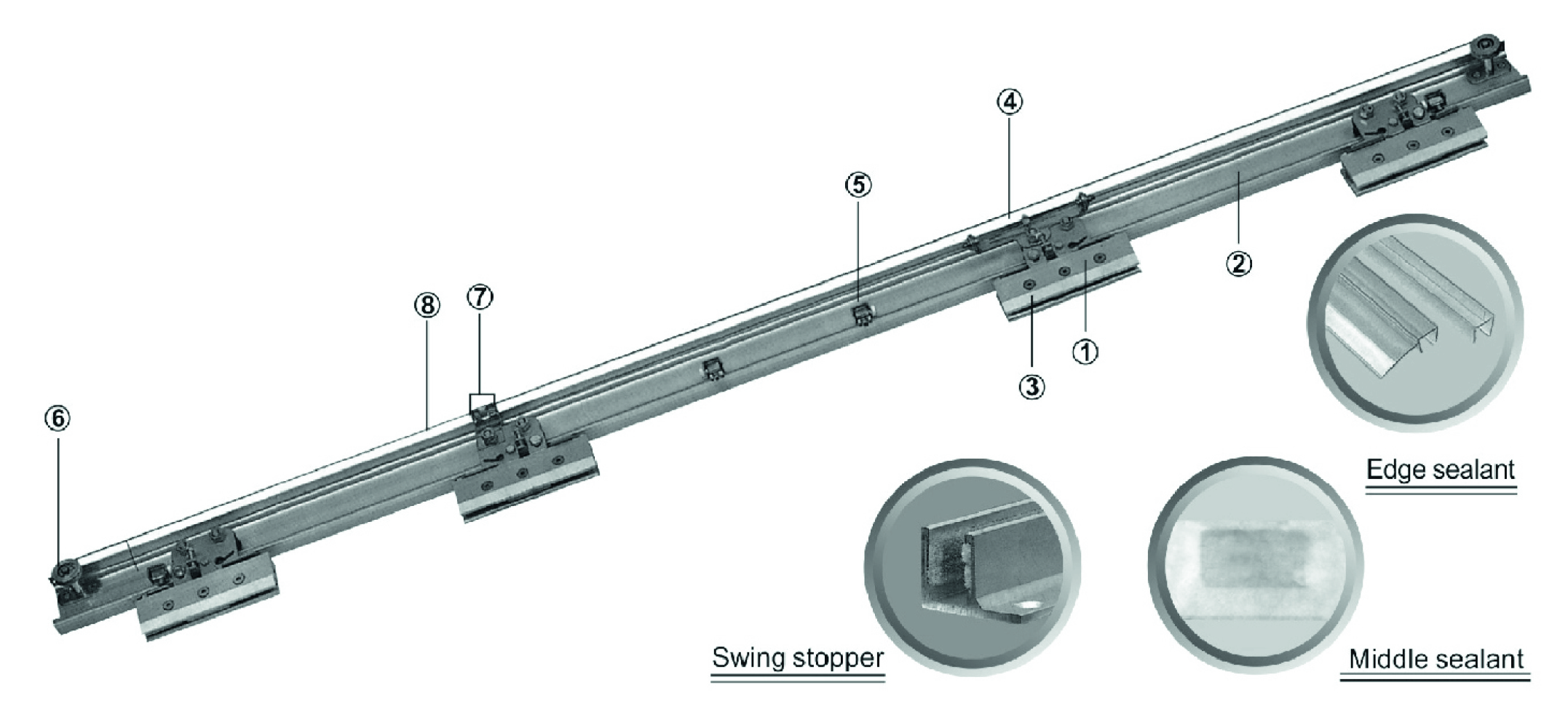

  • Aluminum-alloy track
  • Suspension rack
  • Special-purpose aluminum clamp
  • Semi-automatic transmission connection accessories
  • Stopper
  • Semi-automatic transmission wheel
  • Steel wire fixing screws
  • Steel wire

This is an innovation rail system, featuring noiseless iperation, exera heavy loading, case of push and pull installation it is ideal for glass door, wooden door and stainless steel door etc.

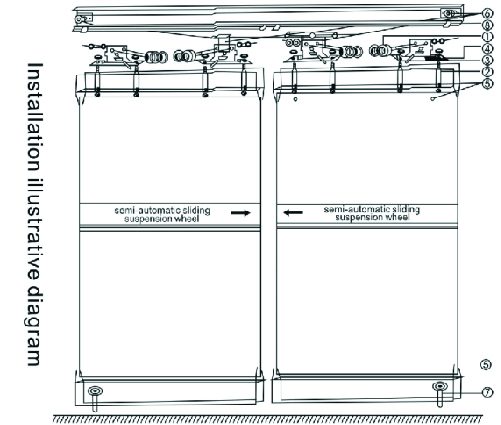

INSTALLATION INSTRUCTION

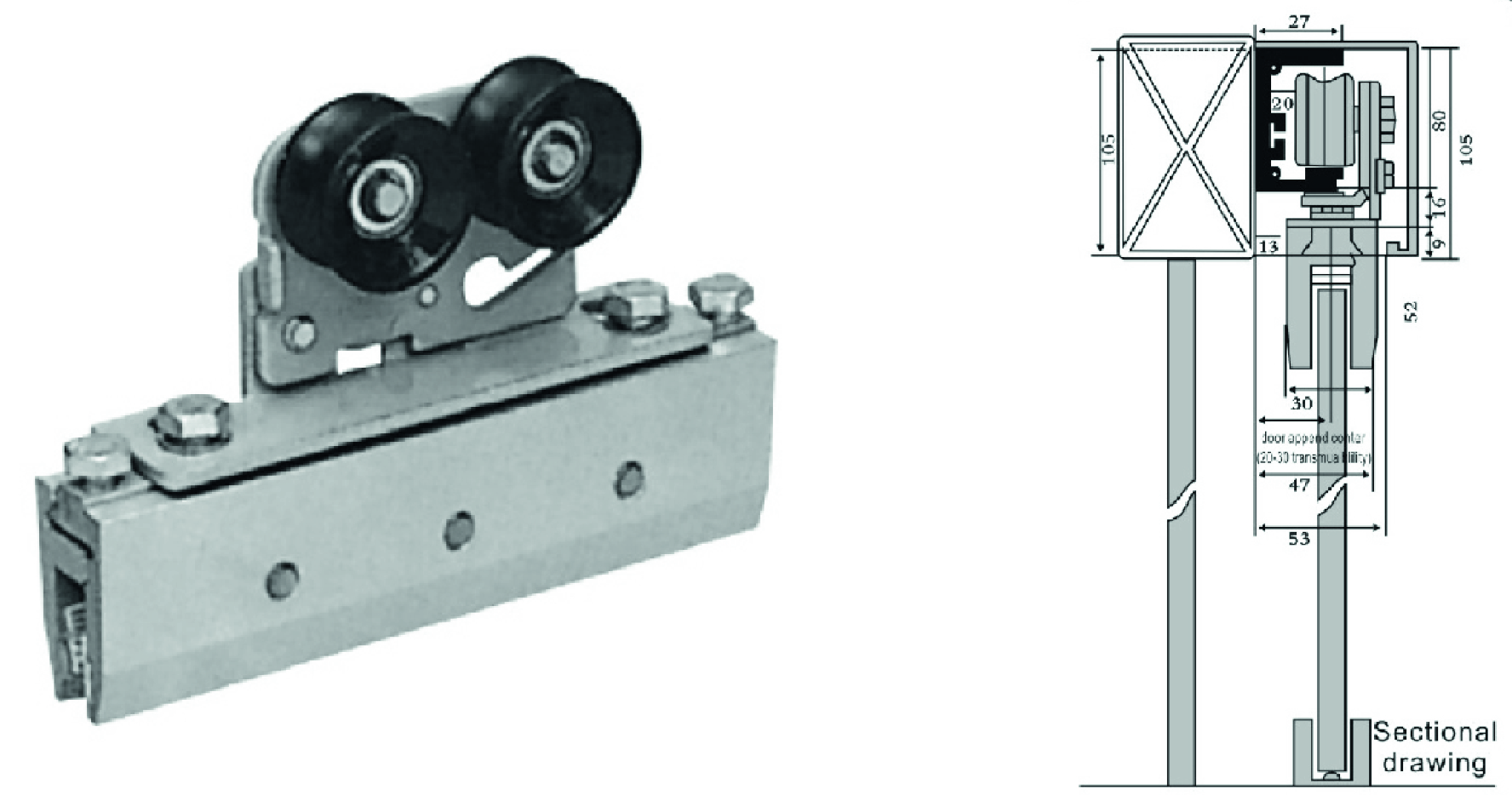

  • Suspension rollers:notched nylon for noiseless running on aluminium alloy.
  • Connecting axle:extend into connection board, adjust with screws at top and bottom; connect with door clamp at bottom, spring piece must be placed al bottom side of connecting axle.
  • Positioning rolling axle;capable of adjusting up/down position for fixing, ensuring steady operation of suspension rollers.
  • Connecting board:for connecting and fixing.
  • Door clamp:Connect to upper clamp glass fixing position D rill hole with diameter of 10mm in glass for clamp, with nylin rad.
  • Semi-automatic device.
  • Floor door clamp positioning.
  • Left/right positioning of sliding track.

This product with stands:not exceeding 2.3m
long, 1.00m wide, 1.2mm thick.
